Gibitre’s Force‑Displacement Cycle Measurement Instrument is engineered for silicone keypads and other technical components. It performs precise force–displacement cycle measurement, capturing behavior throughout the test. A 50 N load cell paired with a displacement sensor with 0.0001 mm resolution delivers stable, high-fidelity results. Each test generates a force–displacement curve ready for immediate analysis with Gibitre FORCE‑DISPLACEMENT software. The combination of the 50 N cell and ultra‑fine resolution makes it ideal for point characterization of silicone keypads and related materials, clearly quantifying the link between applied force and travel. Designed as an integrated set of testing tools—hardware and software—it streamlines setup and control for effective, repeatable measurement in R&D, quality control, and production.
Keyboard Check: measurement of the force-displacement cycle of silicone keyboards and technical items, with 50 N cell, 0.0001 mm sensor, and Gibitre FORCE-DISPLACEMENT software.
• Motor controlled screw with recycling of ball-bearing for the displacement of the sample (max speed 85 mm/min, stroke 50 mm)
• Displacement transducer with 0,0001 mm resolution
• Load cell for the measure of the force (Max load 25 N, Resolution 0,0001 N)
• Interchangeable indentor for the application of the force
• Full license of Gibitre FORCE-DISPLACEMENTsoftware optimized for Bar-code sample identification
• Full license of Datagest software for complete management of Gibitre SQL Database
The software allows you to configure the automatic execution of the test cycle so that it is performed in sequence on several pieces.
It's enough:
• Select the Test Procedure to be used for the product to be tested
• Define the number of tests to be performed automatically
• Define the rotation angle of the support between one test and the next
• Position the specimen holder plate in the position corresponding to the first test
• Press start
The tests will take place automatically

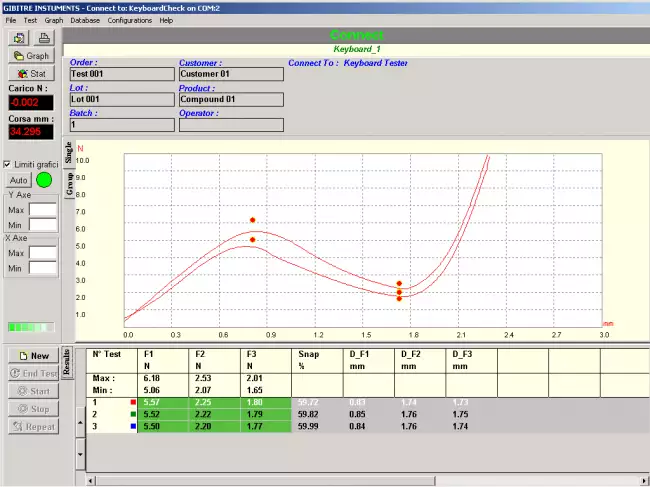

The curves for the various tests will be superimposed with different colors
The curves and results will be saved in the SQL database
Force-Displacement Unit control software (release 9.0) for performing force displacement tests.
Program features:
The program includes:
• Pre-installed Test Procedures for performing standard test cycles
• Wizard for the preparation of fully customized test procedures
• Analysis of the force - displacement curve
• Calculation of the numerical results foreseen by the Test Procedure
• Comparison of results with tolerance limits and statistical analysis
• Storage of data and curves in Gibitre's SQL Standard database.

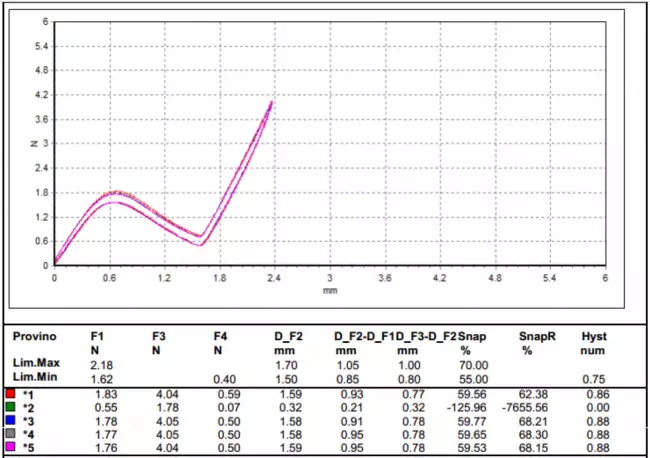

Can be printed or saved to pdf in one of the available languages. The format of the Test Report can be customized by the user.
All the programs produced by Gibitre are multi-language and allow the operator to select the language of use.
The test report can be produced in the desired language regardless of the language of use of the program.
The languages available at the moment are: Italian, English, German, French, Portuguese, Russian, Chinese, Japanese, Turkish, Polish, Czech
The results and test curves of all the tests carried out are saved in the Gibitre SQL database and are available through the Datagest program.
Datagest is the Laboratory Information Management System (LIMS) which is always installed in combination with all Gibitre instrument-control programs.
The program is the collector for all the test result produced with the instruments connected and permits to manage the common Archives used by the instruments (Product List, Customer List, Tolerance limits, Order List, etc)
The instrument and the software have been specifically developed to optimize integration with other environments.
The database in SQL format and the Gibitre_Company_Connect program allows you synchronize your company management software with Gibitre database and to speed up the identification of the tests and to use bar-code readers or similar devices.

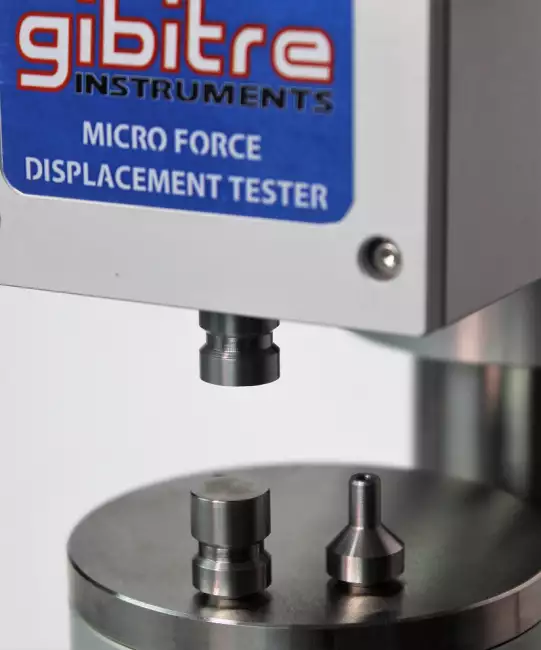

The feelers can have different shapes or diameters depending on the product to be tested.
The probes are fixed to the instrument by means of a magnetic attachment and can be replaced in a few seconds.
• Programs can be installed on standard PCs with WINDOWS 10 or 11 OPERATING SYSTEM.
• The CONNECTION between the instruments and the PC is made using the USB CABLE supplied with the instrument.
• The programs are COMPATIBLE WITH ANTIVIRUS, and other programs installed on the PC.
The instrument is totally developed and produced in the plant of Gibitre Instruments in Italy.
All the mechanical parts are produced in the company workshop using modern CNC machines.
Components and sensors from well-known brands are selected in order to ensure the maximum reliability in the measures
Internal trained personnel takes care of all the production stages: assembly, start-up, calibration, packing, shipment and installation.
